Équipement de distillerie
| Model | ZR-DT-1500L |
| Production | 1500L/Batch, 95% high alcohol can be distilled |
| Capacity | Effective volume: 1500L |
| Material | SUS304 SUS316 Red Copper |
| Uasge | Whisky Brandy Rum Vodka Others |
| Application | Home commercial |
| Heating way | Electric heating Steam heating Direct fire heating |
| Control System | Fully automated with PLC Siemens Semi-Automated with PID Schneider |
| Voltage | Three-phase/380(220, 415,480…)v/50(60)Hz Single phase/220(110, 240…)v/50(60)Hz |
| Note:1Barrel (BBL) =117 Liter 1Hl=100 Liter 1Gallon=3.7854 Liter | |
Advantage of steam heating way
-----------------------------------------------------------------------------------------------------------------
▶ The steam temperature is constant, the heating area is large and evenly heated, and the pot is not sticky;
▶ Control the temperature by controlling the pressure, quickly and accurately reach the set temperature
▶ High heat exchange coefficient, the same heat exchange demand, the required heat exchange area is smaller, which can reduce equipment investment
▶ Steam heating equipment is easy to clean
▶ Distilled spirits tastes good
▶ The equipment investment cost is high, but the operating cost is twice as low as that of electric heating
▶ Suitable for areas where natural gas, LPG is plentiful and cheap

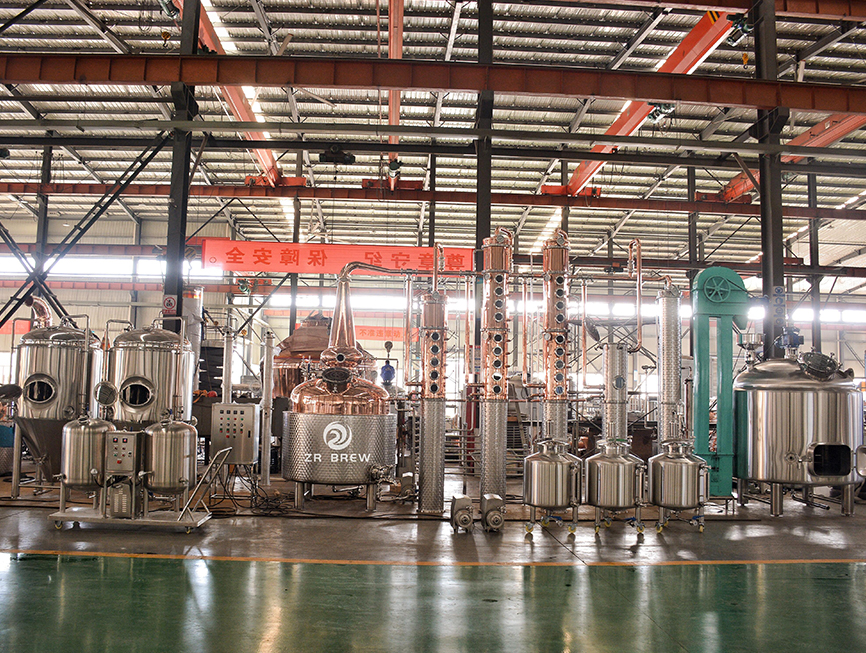

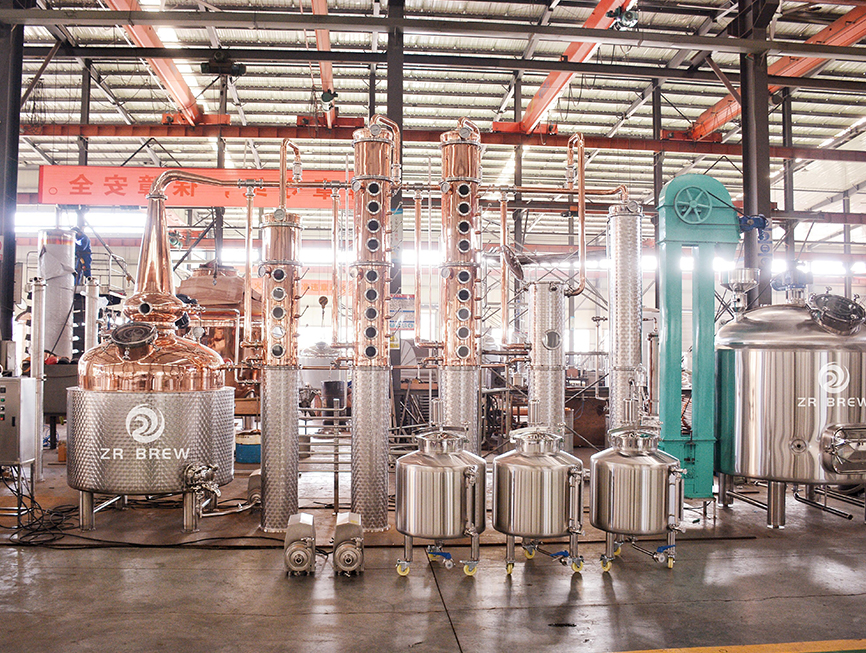

1500L Distillery Equipment Standard Configuration
-----------------------------------------------------------------------------------------------------------------
▶ Crushing system
▶ Feeding system

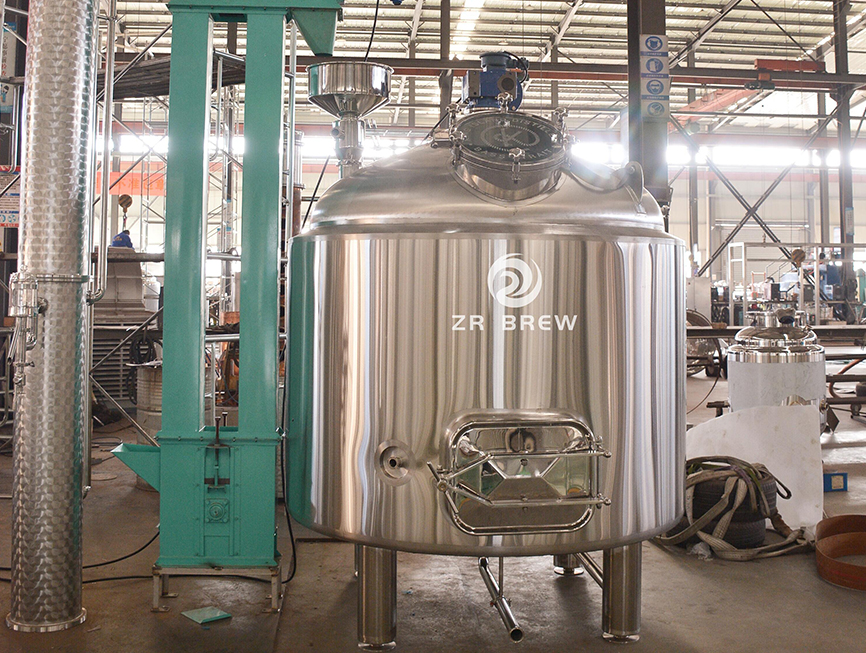

▶ 1500L Mash/Lauter tun With stirring, sieve plate, manhole, insulation layer and plate heat exchanger

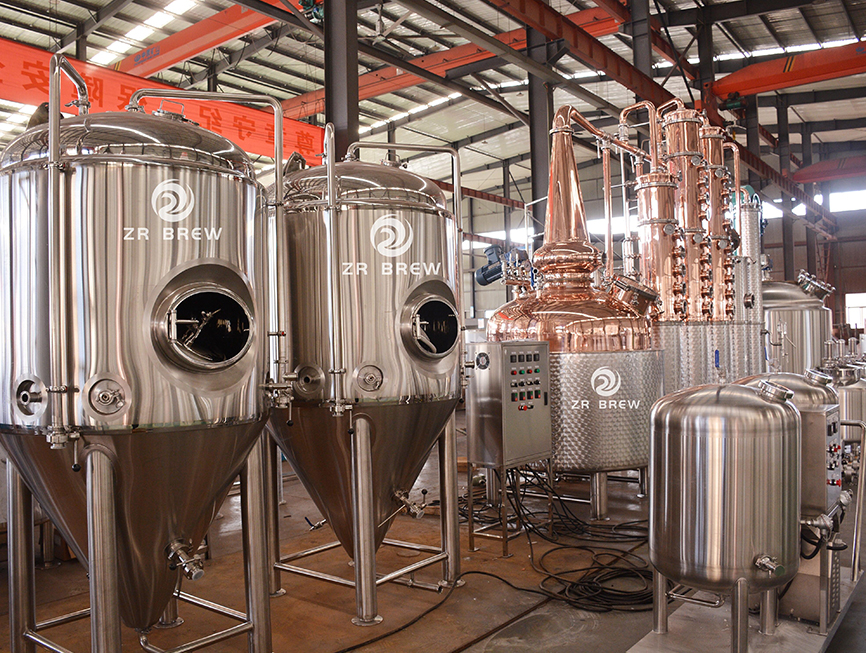

▶ 1500L Fermentation Tank
▶ Fermentation liquid delivery pump

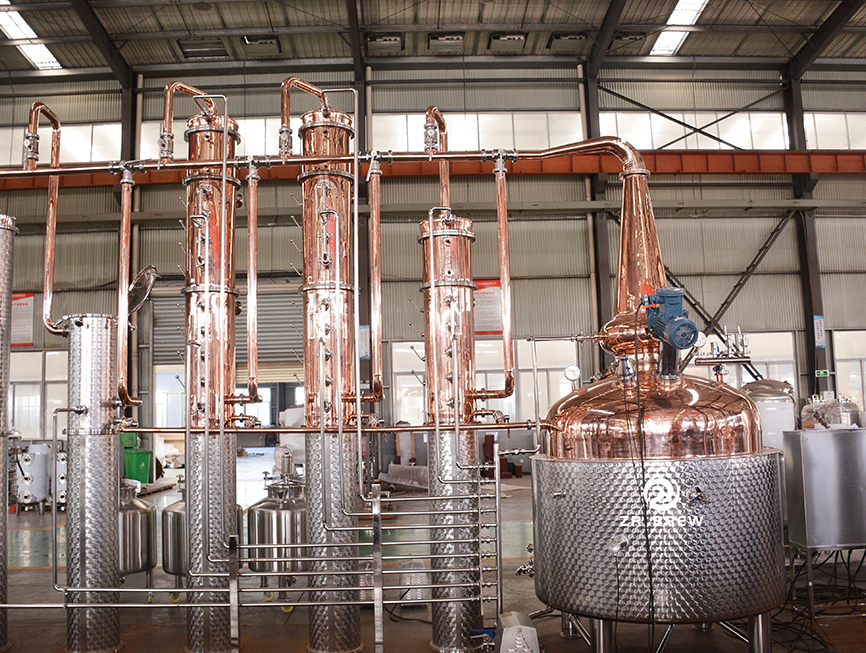

▶ 1500L distiller: stainless steel, copper, stainless steel and copper are available, equipped with a stirrer,steam heating way, glass manhole

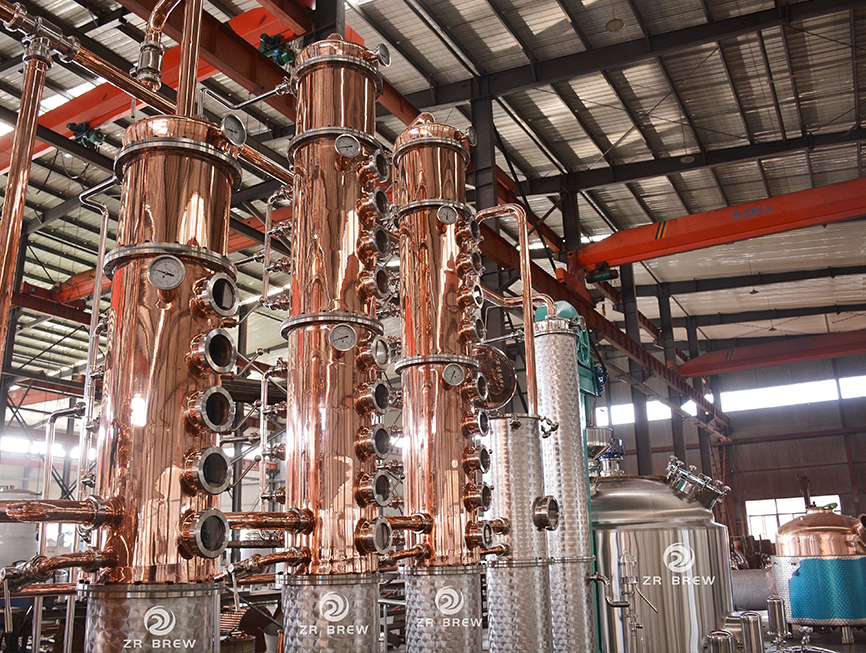

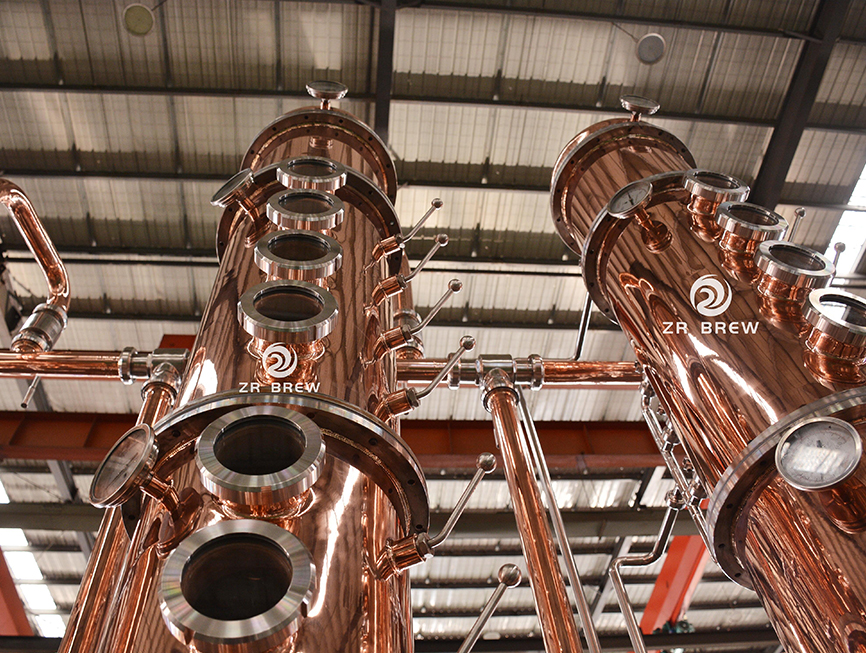

▶ 24 Floors distillation column: stainless steel, copper, stainless steel and copper are available, Sight glass, CIP and thermometer at every plate.

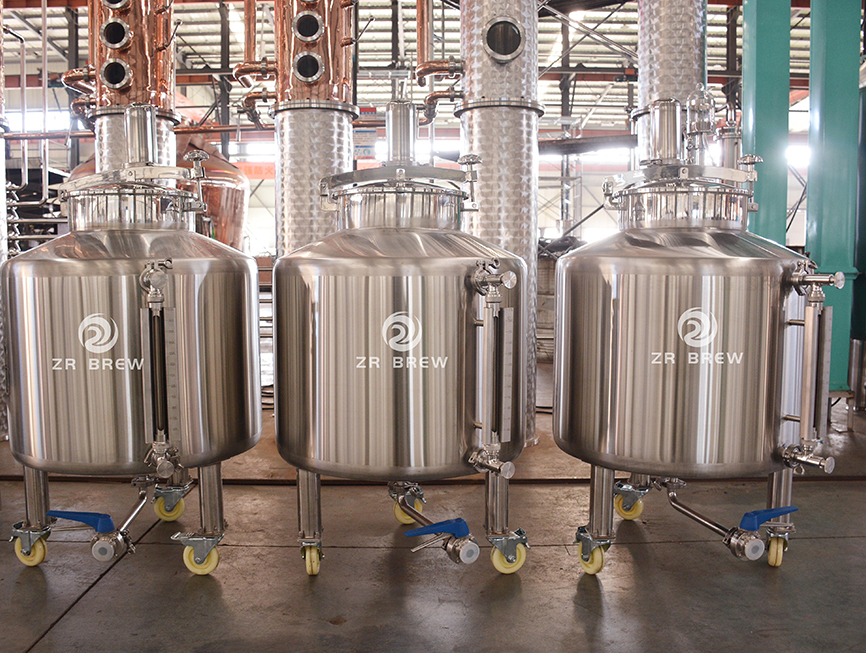

▶ 3 Storage tank
▶ Steam generator
▶ Cooling System
▶ CIP cleaning system
▶ PID control system
| Types | Volume | Component |
| Whisky distiller | 50-5000L | Still pot, swan neck, condenser, CIP, pipe system |
| Vodka distiller | 50-5000L | Still pot , onion head, column, dephlegmator, condenser, pipe system |
| Brandy distiller | 50-5000L | Still pot, onion head, dephlegmator, column, condenser ,CIP, pipe system |
| Rum distiller | 50-5000L | Still pot, column, condenser, CIP, pipe system |
| Gin distiller | 50-5000L | Still pot, column, gin basket, condenser, CIP, pipe system |
| Multi-spirits distiller | 200-5000L | Still pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank |
Comment contrôler la température du fermenteur
L'automate ou l'afficheur numérique est connecté au capteur de température PT100 installé sur le réservoir via la ligne de signal pour contrôler la température.
Quels facteurs doivent être pris en compte lors du choix d'un ensemble d'équipement de brassage de bière de bar
1. La consommation de bière
2. Conditions du site
3. Investissement estimé
4. Types de vinification
5. Lots de brassage quotidiens
6. Processus de brassage
7. Matériel de vente de vin
8. L'esthétique de l'équipement
