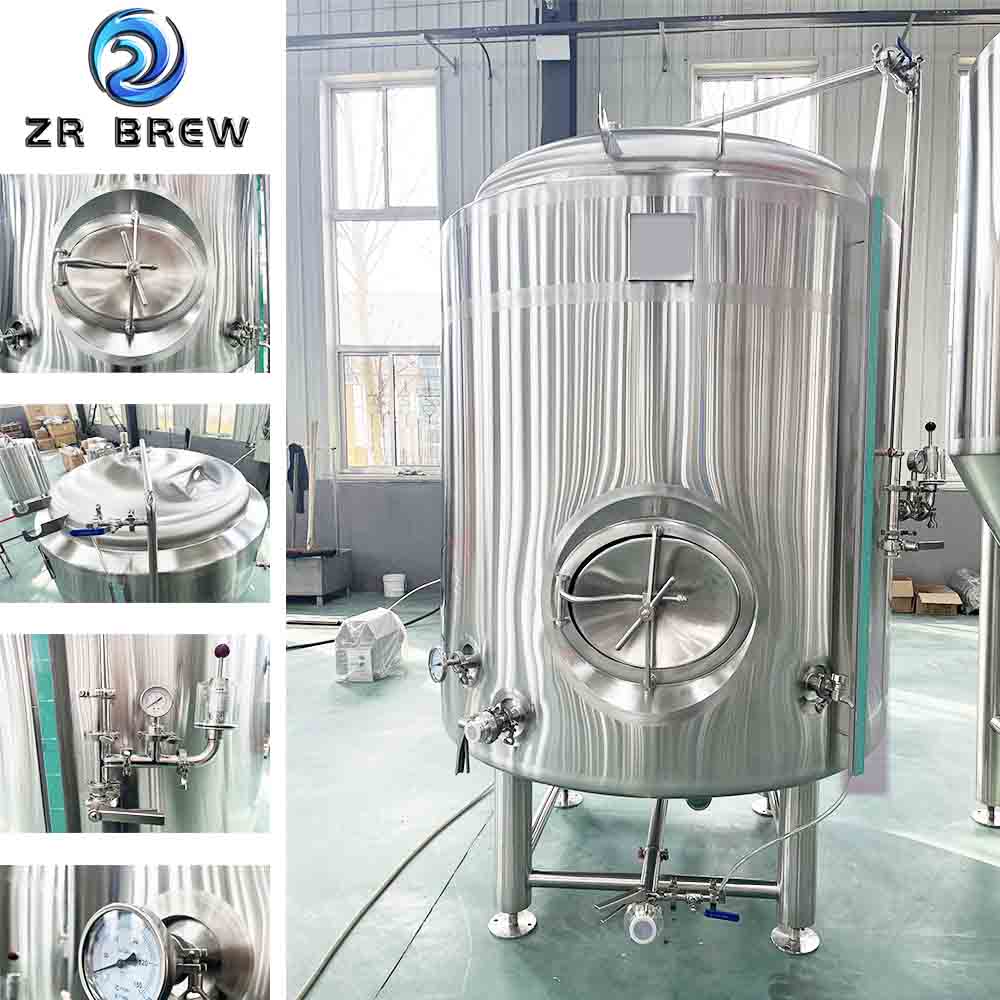

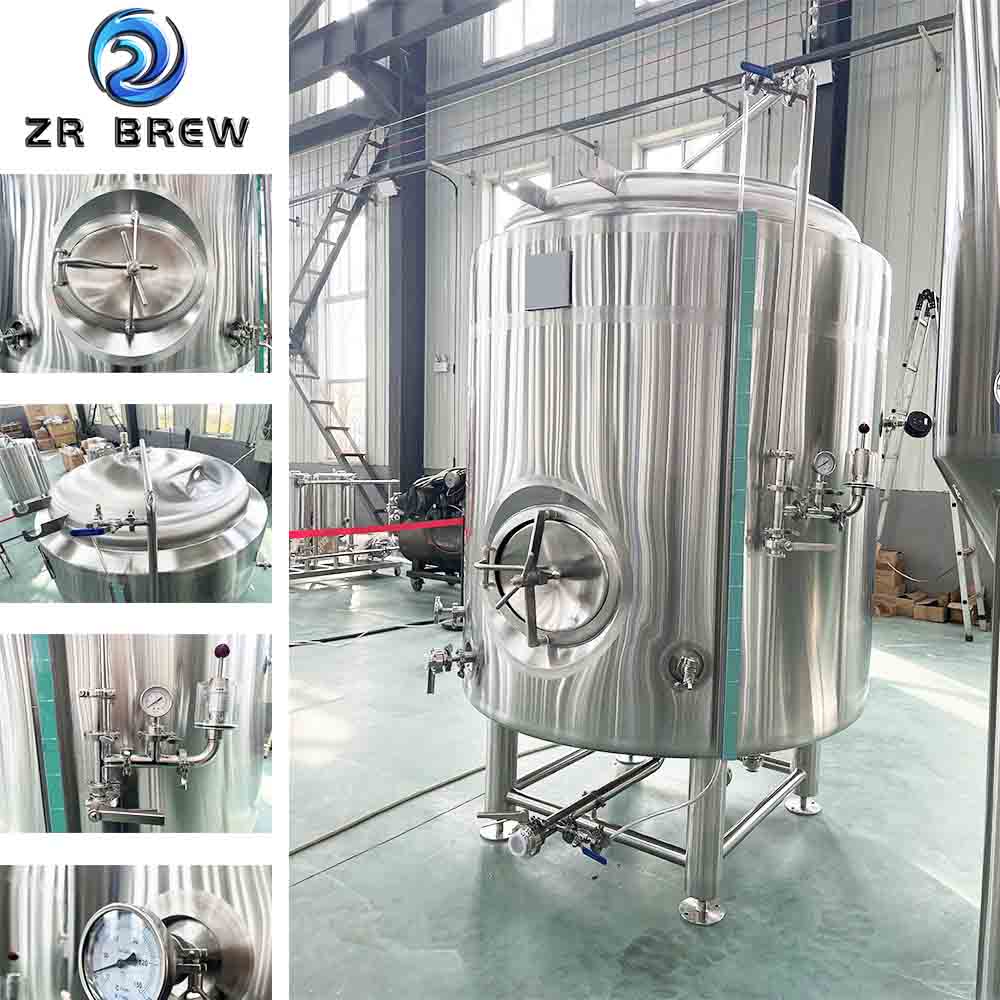

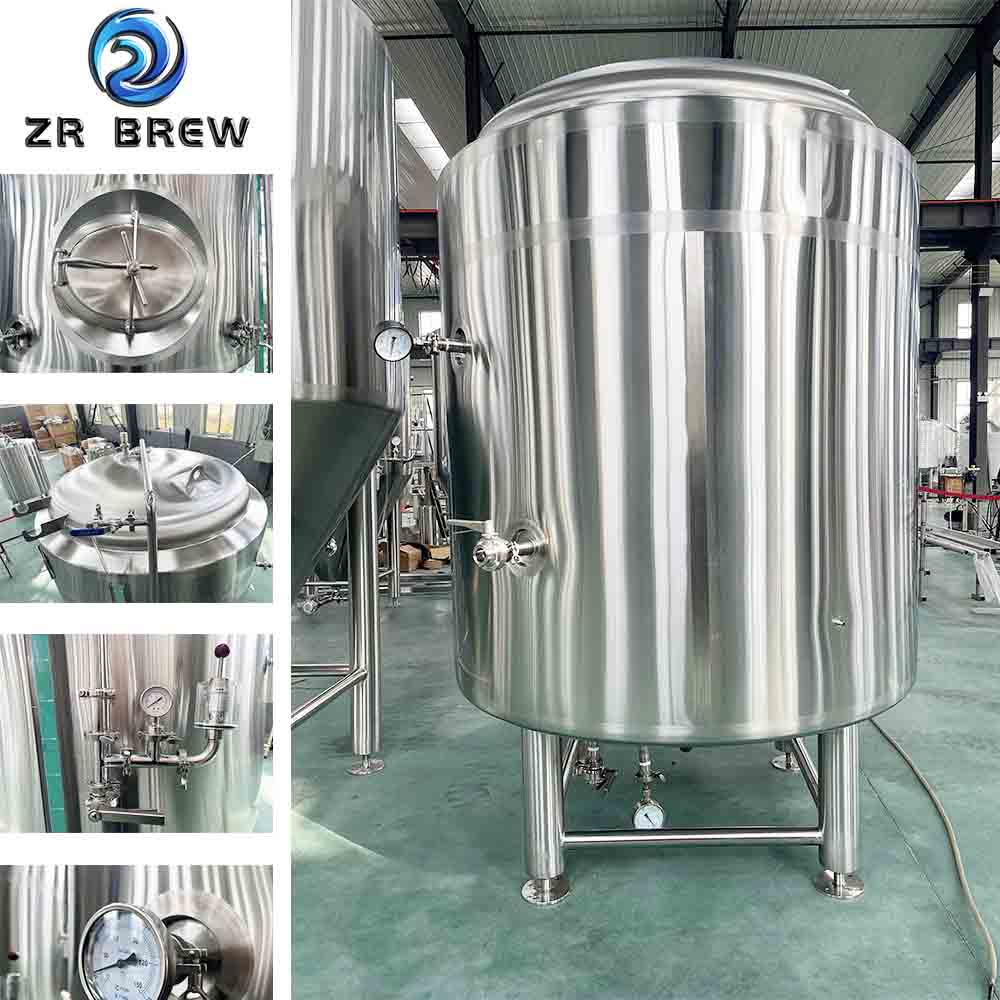

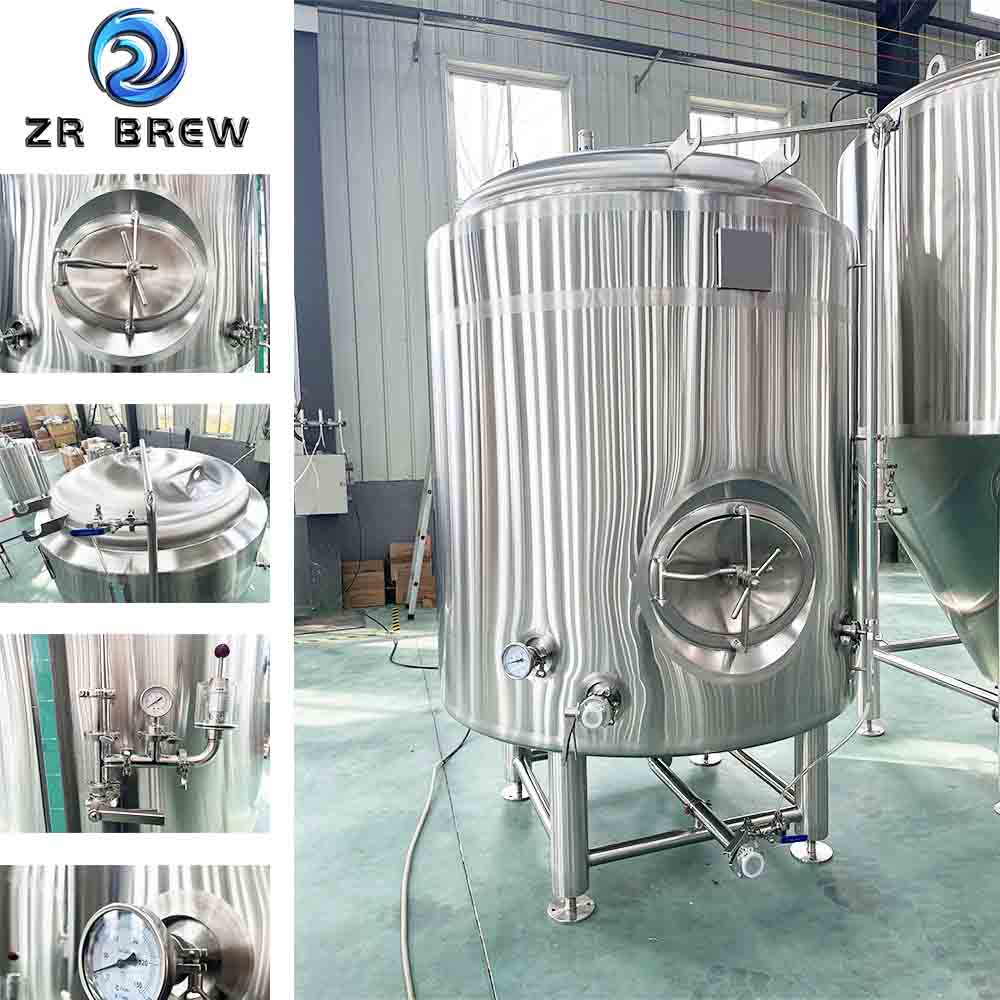

15bbl清酒罐

Mechanical PRV	Sample Valve	Pressure manhole
Titanium Rods	Temperature Sensor	Solenoid valve
Racking Arm	Ladder hook	Hop adding port
Welding Detail	Safety valve	Adjusting bolt

10BBL beer fermenter standard configuration

 Dished and conical head are available

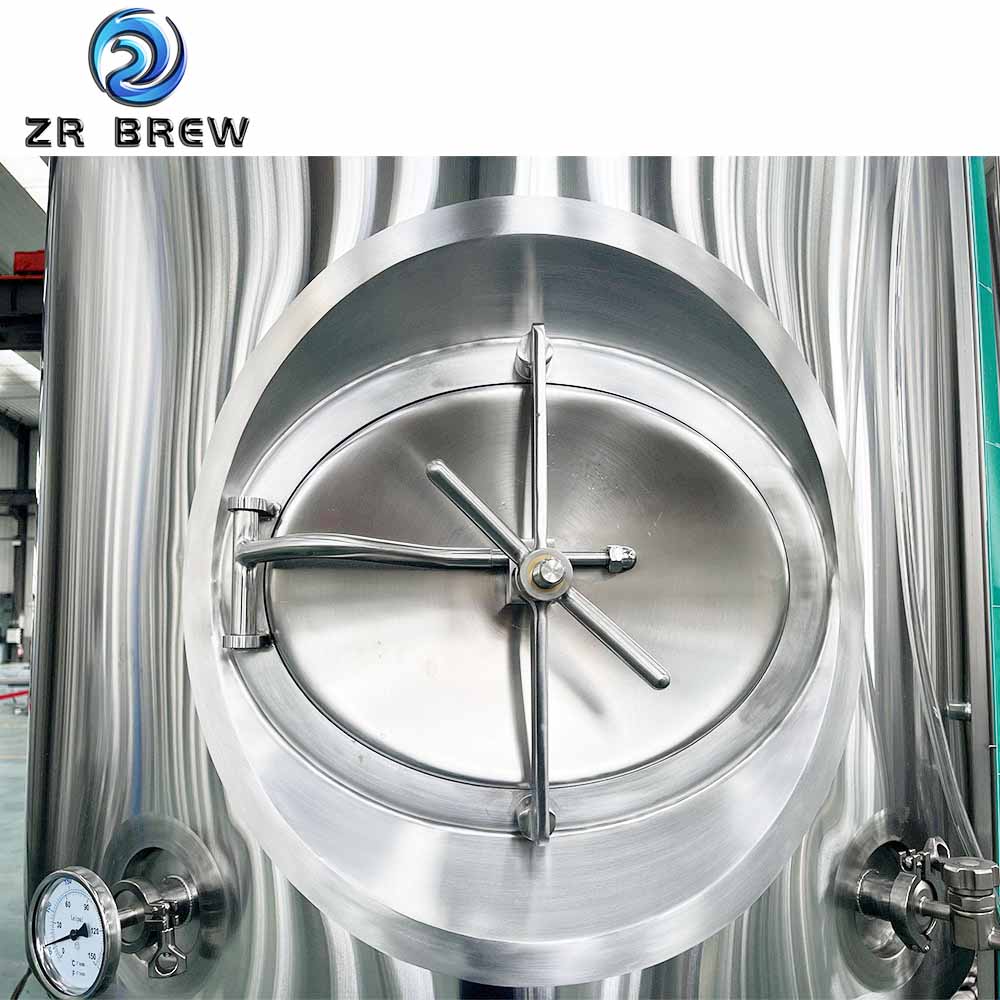

 Pressure side manhole door

 TC connected CIP arm with 360° coverage spraying ball

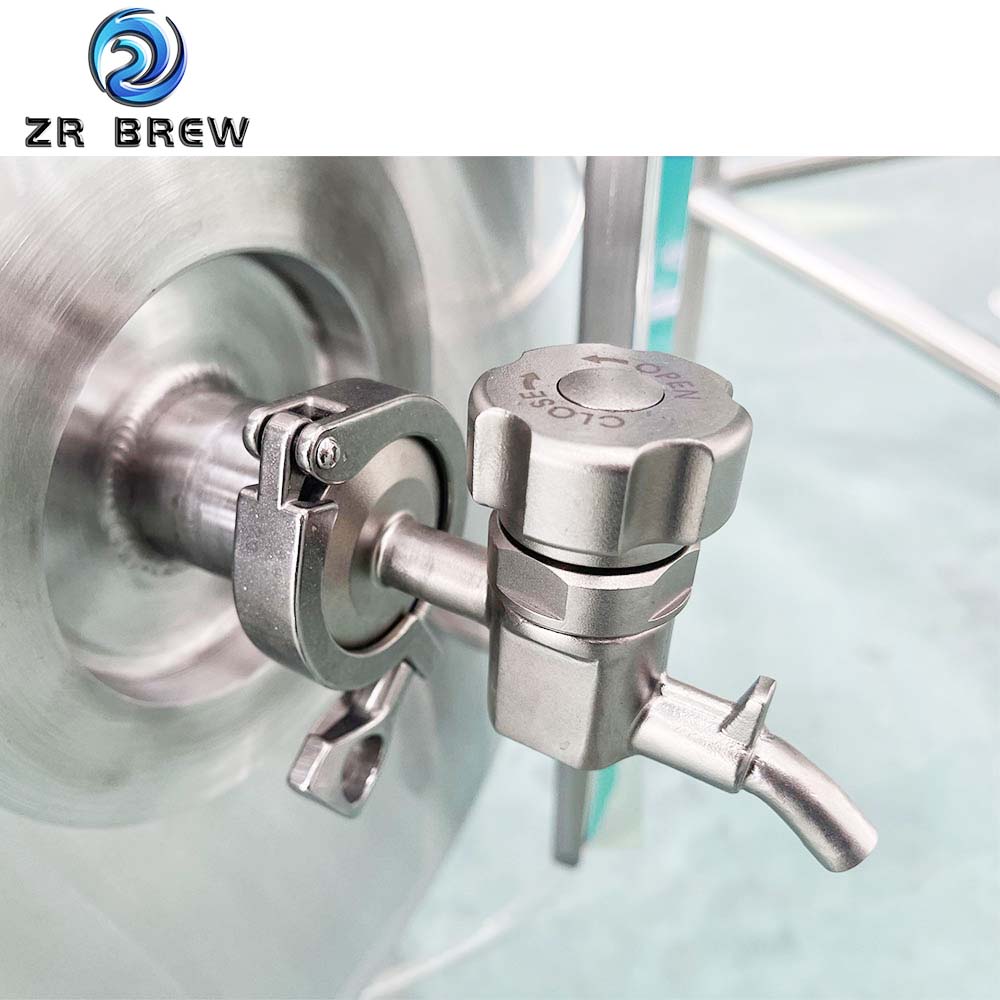

 Sanitary sample valve

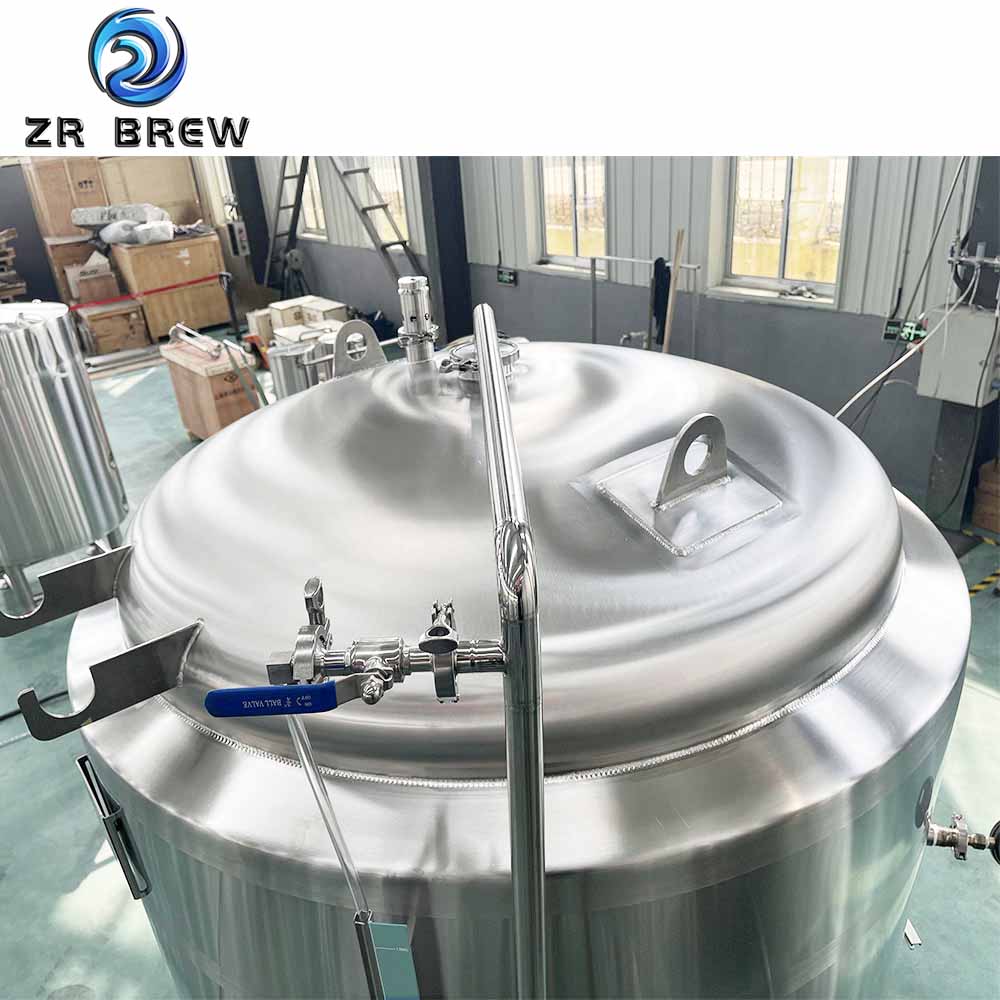

 Safety valve on top

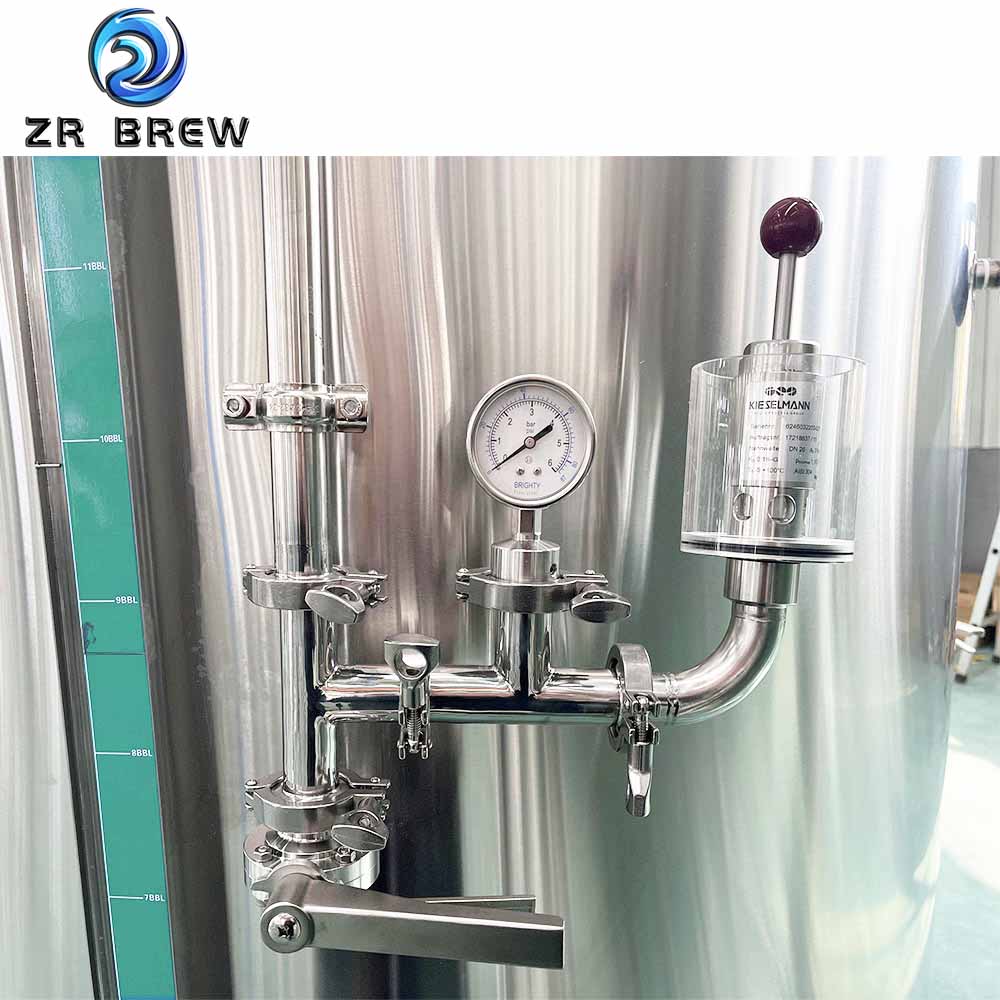

 Mechanical safe valve PVRV 2 bar on CIP arm

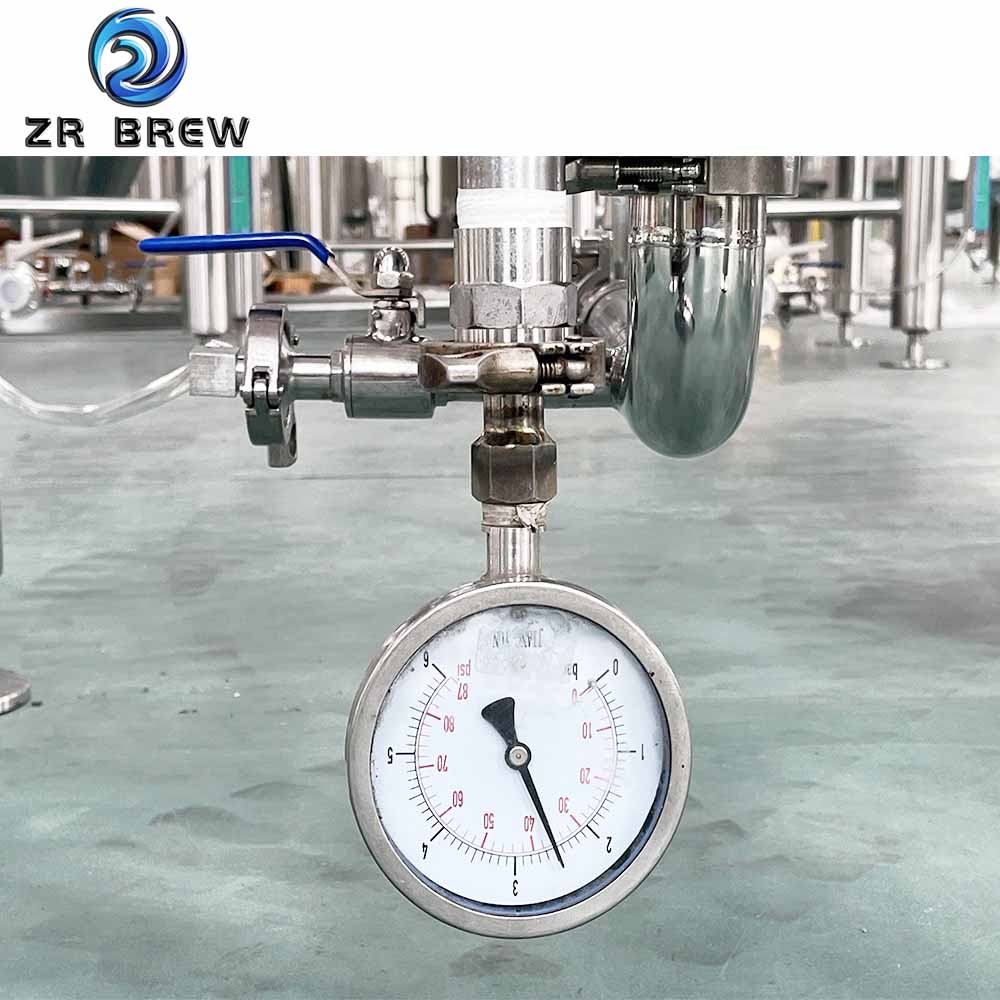

 Diaphragm pressure gauge on CIP arm

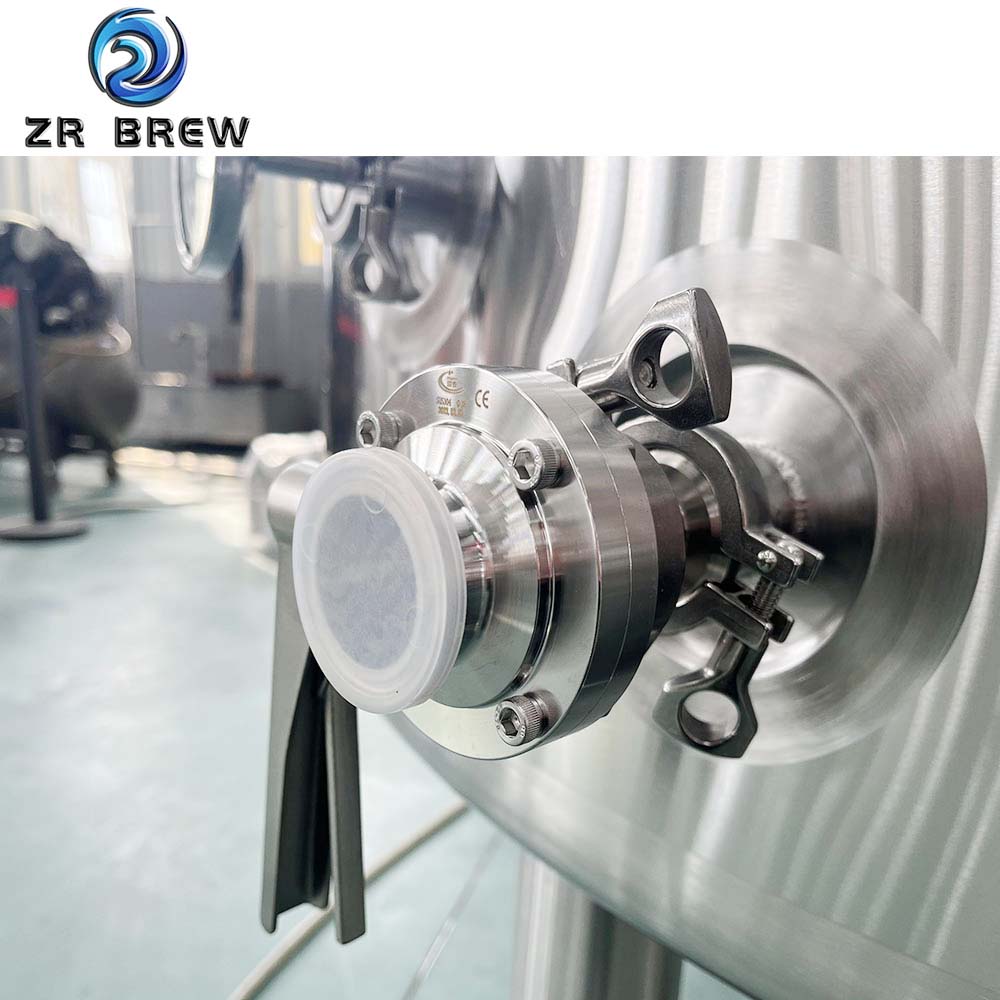

 Horizontal rotating racking arm and port on cone with butterfly valve

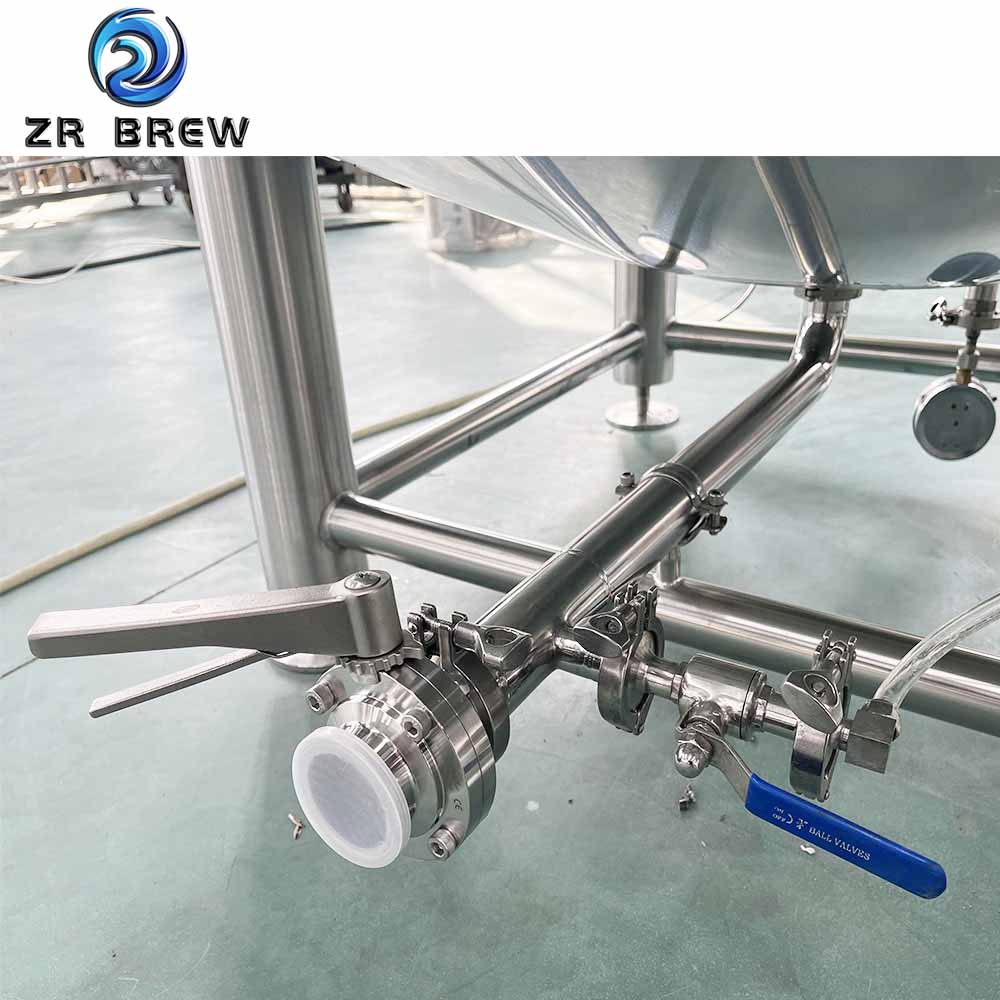

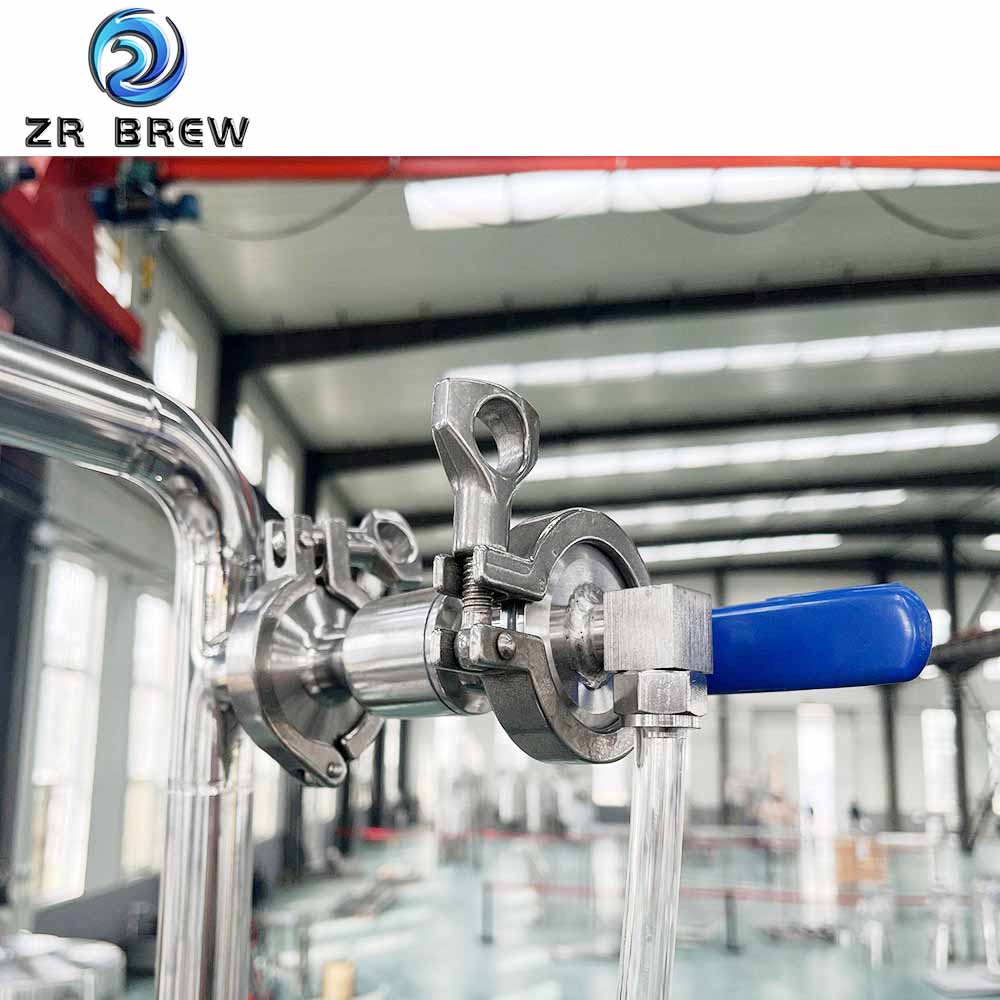

 Tri clamp discharge arm with butterfly valve

 Dry hopping port 6-8'' TC with solid end cap

 Thermowell for high accuracy temperature sensor

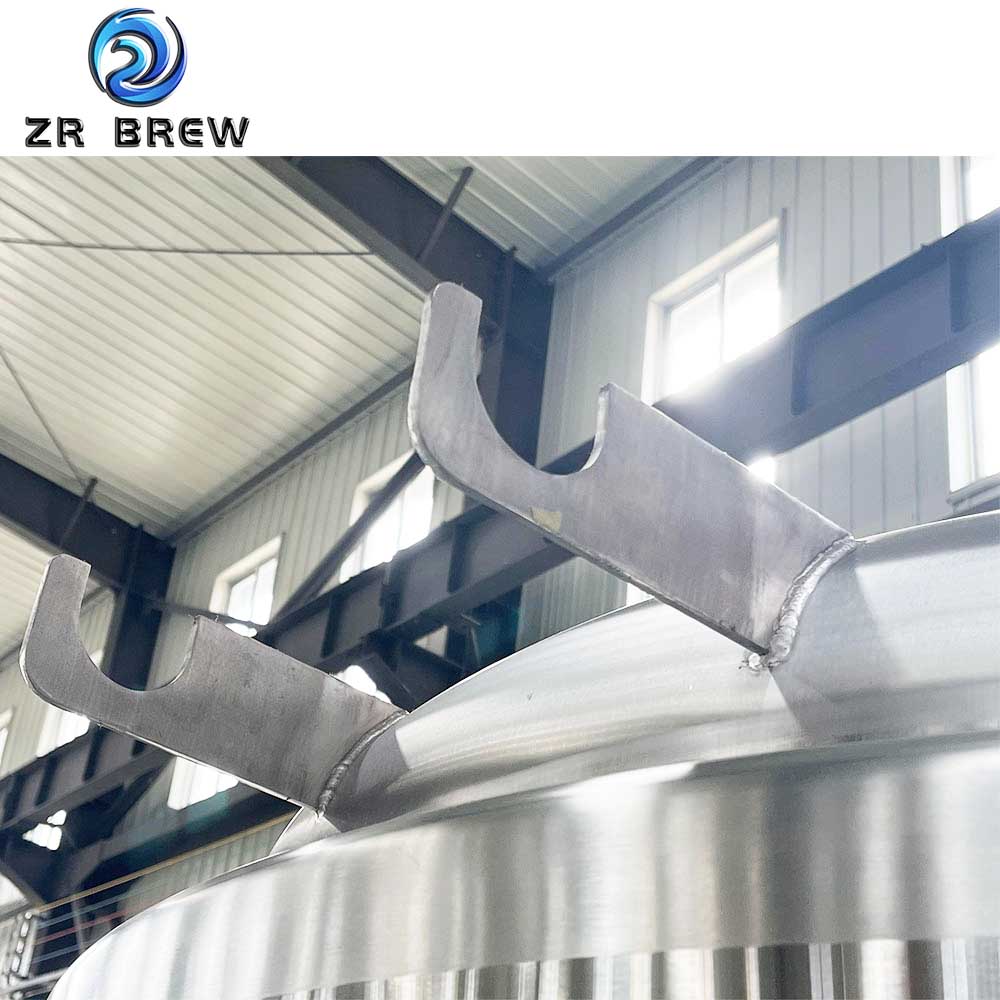

 Top hooks for hanging ladders

 4pcs completely SUS304 heavy duty legs with leveling pad and legs support

 Complete valves, fittings and all parts

 100% TIG welding with pure argon gas shield

 Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)

 Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional)

 Interior full polished to 0.2~0.4 μm without dead corner

 Glycol Jacket: Dimpled plate on cone and side

10BBL beer fermenter  optional configuration

Separate blow-off pipe & CIP

 Carbonation stone for CO2

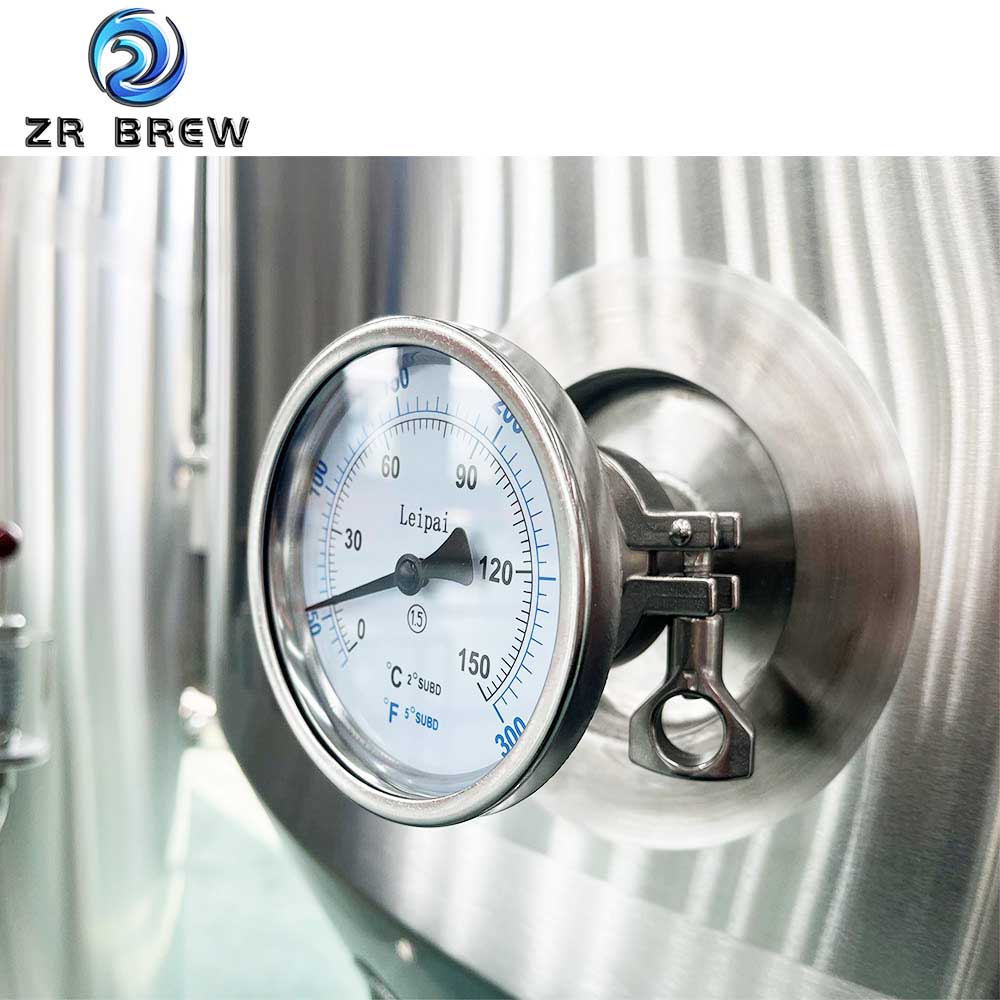

 Display temperature gauge in front

 Liquid level display on the sidewall

Advantage of configuration

For easy yeast excretion, designed with a 60° cone angle

 Polishing/drawing/mirror finish/pickling passivation optional

 Shadowless manholes or top manholes depending on the customer's fermentation process and brewing type.

 The headspace is larger, and the covering headspace volume is calculated separately and additionally.

 Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours,Tank leakage test by water and gas, 4bar/60psi for 1hour,   2.5bar/37.5psi for 48 hours,all data will be recorded to facilitate strict quality control and management

 Easy to operate with dedicated ladder

 For easy lifting, it is equipped with lifting lugs.

 For flexible conveying of beer, it is equipped with a swivel rocker

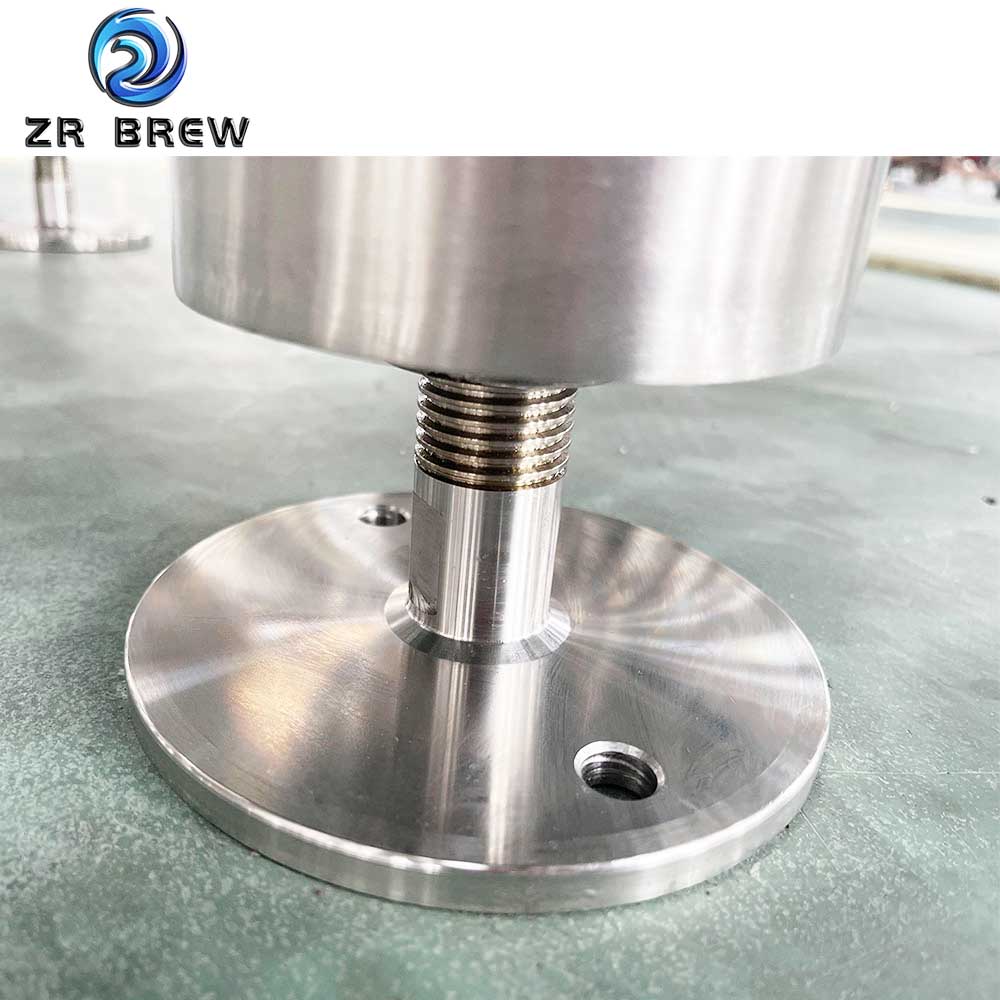

 To ensure tank alignment and leveling, it is equipped with adjustment bolts

Specifications and models
